zfw 23.05.15

2023.05.15 - [네트워크 수업/Docker] - zfw.pdf 23.05.15

IP Address

[FW]

int f0/1

no shut

ip add 1.1.100.5 255.255.255.252



int f0/0

no shut

ip add 200.1.2.254 255.255.255.0



int f2/0

no shut

ip add 200.1.1.254 255.255.255.0



int f1/0

no shut

ip add 1.1.100.1 255.255.255.252



do show ip route



[CE]

int f0/0

no shut

ip add 1.1.100.2 255.255.255.252



int f1/0

no shut

ip add 2.2.2.254 255.255.255.0



int f0/1

shut

mac-address 1234.1234.1122

no shut

ip add dhcp





[DMZ]

int f0/1

no shut

ip add 100.1.1.254 255.255.255.0



int f0/0

no shut

ip add 1.1.100.6 255.255.255.252









zone 이 나눠짐(DMZ inside, outside 처럼)

zone이 형성되면 traffic이 아무것도 오갈수가 없다.

일반 방화벽처럼 구현됨

일반 라우터로 구현될수 있는 방화벽과 유사한 것을 zone based fire이라고 한다.



Routing

[FW]

ip route 100.1.1.0 255.255.255.0 f0/1 1.1.100.6

ip route  0.0.0.0 0.0.0.0 f1/0 1.1.100.2



[DMZ]

ip route 0.0.0.0 0.0.0.0 f0/0 1.1.100.5



[CE]

ip route 1.1.100.4 255.255.255.252 f0/0 1.1.100.1

ip route 100.1.1.0 255.255.255.0 f0/0 1.1.100.1

ip route 200.1.1.0 255.255.255.0 f0/0 1.1.100.1

ip route 200.1.2.0 255.255.255.0 f0/0 1.1.100.1



ip route 0.0.0.0 0.0.0.0 f0/1 10.0.0.1





NAT

[CE]

ip access-list standard INGRESS

permit 100.1.1.0 0.0.0.255

permit 200.1.1.0 0.0.0.255

permit 200.1.2.0 0.0.0.255

permit 2.2.2.0 0.0.0.255



ip nat inside source list INGRESS interface f0/1 overload



int range f1/0 , f0/0
ip nat inside
int range f0/1
ip nat outside









root P@ssw0rd



KALI

vi /etc/network/interfaces



인터넷으로 핑날아가는지 확인



방화벽

[FW]

zone security Inside

exit

zone security DMZ

exit

zone security Outside

exit



//firewall 이 어느 zone에 들어가있는지 알려준다.

int range f0/0 , f2/0

zone-member security Inside



int f1/0

zone-member security Outside



int f0/1

zone-member security DMZ



show zone security  //확인 명령어

//이렇게 나뉘면 이제 zone간에 통신이 안된다.

//같은 zone에서만 ping 가능.

//고가의 router에만 이런 설정 가능. 중저가는 xx



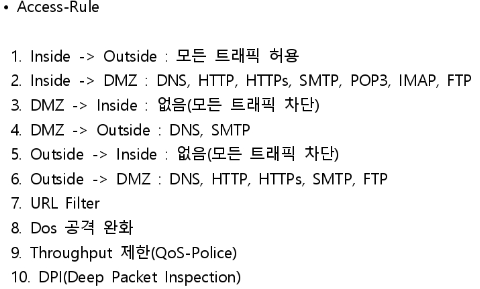

이제 이 설정으로!



DNS,HTTP, HTTPs, SMTP, POP3, IMAP, FTP

[FW]

access-list 100 permit ip any any
class-map type inspect IN->OUT_C
match access-group 100
exit
policy-map type inspect IN->OUT_P



class type inspect IN->OUT_C

inspect // 모든것 허용해주는 명령

에러메시지가 아니다! 잘 설정 된 것

//Name of zone-pair 의 이름은 interface 와 달라도 되지만 웬만하면 같게 맞춰줘라.



zone-pair security Inside source Inside destination Outside
service-policy type inspect IN->OUT_P //모든 것 다 허용할거다



FW#show zone-pair security

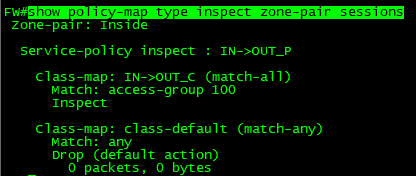

FW#show policy-map type inspect zone-pair sessions



FW(config)#class-map type inspect match-any WEB  //match-any(or 연산)를 생략하면 match-all 이 기본값이 된다(and연산)
FW(config-cmap)#match protocol http
FW(config-cmap)#match protocol https

//http 또는 https //or 연산



access-list 101 permit ip any host 100.1.1.251
access-list 102 permit ip any host 100.1.1.250  //web traffic 분류



//web server 와 dns server 분류

class-map type inspect WEB_SER  //and 연산 --class map에서 다른 class map을 호출했다!!(acl도 호출 가능) --and연산하고 싶어서 끌고온것.
match access-group 101  //출발지가 어디든간에 목적지가 101( 100.1.1.251) 로 가는것

match class-map WEB



class-map type inspect DNS_SER
match access-group 102
match protocol dns



//Mail 서버 분류

class-map type inspect match-any MAIL_SERVICE//smtp pop imap이 and 연산되면 안되니까 match-any 넣기

match protocol smtp

match protocol pop3

match protocol imap



class-map type inspect FTP_C

match protocol ftp

exit



//이제 policy

policy-map type inspect IN->DMZ_P

class type inspect WEB_SER

inspect  //이 class map을 검사하고 검증해라

exit



class type inspect DNS_SER

inspect



class type inspect MAIL_SERVICE

inspect



class type inspect FTP_C

inspect



//zone-pair

zone-pair security IN->DMZ source Inside destination DMZ

service-policy type inspect IN->DMZ_P



do show policy-map type inspect IN->DMZ_P

//여기까지 4개 허용(web, dns, ftp, mail)



DMZ → Outside  //DNZ,SMTP

# show class-map type inspect DNS_SER

 Class Map type inspect match-all DNS_SER (id 4)
   Match access-group  102
   Match protocol dns



class-map type inspect DNS_C

match protocol dns  // protocol 이 dns 면서 100.1.1.250으로 가는 것(용도가 다르다)

exit

class-map type inspect SMTP_C

match protocol smtp

exit



//policy

policy-map type inspect DMZ->OUT_P

class type inspect DNS_C

inspect

exit

class type inspect SMTP_C

inspect

exit



//zone-pair

zone-pair security DMZ->OUT source DMZ destination Outside  //출발지는 DMZ, 목적지는 Outside

service-policy type inspect DMZ->OUT_P





Outside →  DMZ  // DNS, HTTP, HTTPs,SMTP,FTP

policy-map type inspect OUT->DMZ_P

class type inspect WEB_SER
inspect
class type inspect DNS_SER
inspect
class type inspect FTP_C
inspect
class type inspect SMTP_C
inspect



zone-pair security OUT->DMZ source Outside destination DMZ



service-policy type inspect OUT->DMZ_P

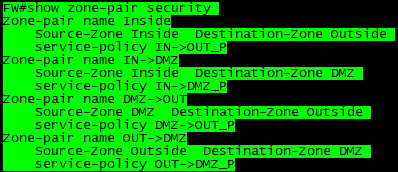

# show zone-pair security

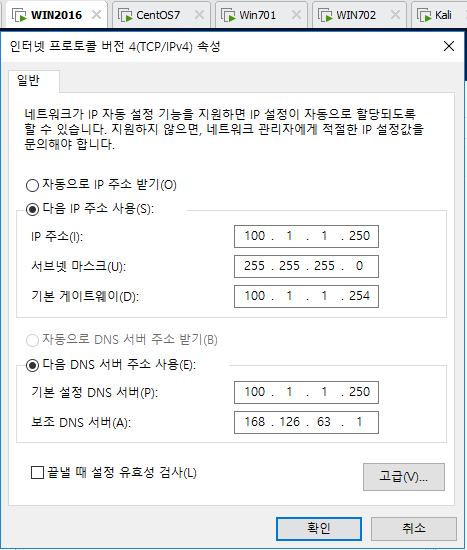

win2016에서





[root@Docker1 ~]# ifconfig
        inet 100.1.1.251  //ip확인

[root@Docker1 ~]# systemctl start httpd

[root@Docker1 ~]# systemctl restart httpd

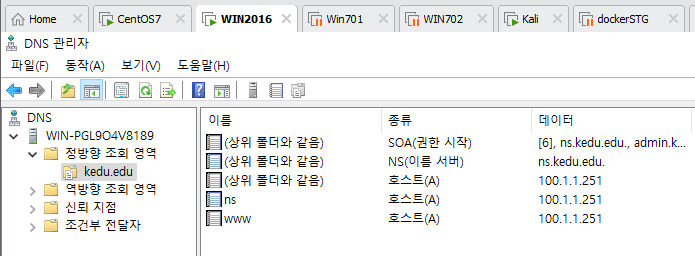

Win701에서 이름쓰기 되나 확인  --> 난 안됨;;;;

nslookup

www.kedu.edu





---

[FW] show run

class-map type inspect match-all SMTP_C
 match protocol smtp
class-map type inspect match-any MAIL_SERVICE
 match protocol smtp
 match protocol pop3
 match protocol imap
class-map type inspect match-all DNS_SER
 match access-group 102
 match protocol dns
class-map type inspect match-all DNS_C
 match protocol dns
class-map type inspect match-all IN->OUT_C
 match access-group 100
class-map type inspect match-any WEB
 match protocol http
 match protocol https
class-map type inspect match-all WEB_SER
 match access-group 101
 match class-map WEB
class-map type inspect match-all FTP_C
 match protocol ftp
!
!
policy-map type inspect DMZ->OUT_P
 class type inspect DNS_C
  inspect
 class type inspect SMTP_C
  inspect
 class class-default
policy-map type inspect OUT->DMZ_P
 class type inspect WEB_SER
  inspect
 class type inspect DNS_SER
  inspect
 class type inspect FTP_C
  inspect
 class type inspect SMTP_C
  inspect
 class class-default
policy-map type inspect IN->DMZ_P
 class type inspect WEB_SER
  inspect
 class type inspect DNS_SER
  inspect
 class type inspect MAIL_SERVICE
  inspect
 class type inspect FTP_C
  inspect
 class class-default
policy-map type inspect IN->OUT_P
 class type inspect IN->OUT_C
  inspect
 class class-default
!
zone security Inside
zone security DMZ
zone security Outside
zone-pair security Inside source Inside destination Outside
 service-policy type inspect IN->OUT_P
zone-pair security IN->DMZ source Inside destination DMZ
 service-policy type inspect IN->DMZ_P
zone-pair security DMZ->OUT source DMZ destination Outside
 service-policy type inspect DMZ->OUT_P
zone-pair security OUT->DMZ source Outside destination DMZ
 service-policy type inspect OUT->DMZ_P
!
!
!
!
interface FastEthernet0/0
 ip address 200.1.2.254 255.255.255.0
 zone-member security Inside
 duplex auto
 speed auto
!
interface FastEthernet0/1
 ip address 1.1.100.5 255.255.255.252
 zone-member security DMZ
 duplex auto
 speed auto
!
interface FastEthernet1/0
 ip address 1.1.100.1 255.255.255.252
 zone-member security Outside
 duplex auto
 speed auto
!
interface FastEthernet2/0
 ip address 200.1.1.254 255.255.255.0
 zone-member security Inside
 duplex auto
 speed auto
!
ip http server
no ip http secure-server
ip forward-protocol nd
ip route 0.0.0.0 0.0.0.0 FastEthernet1/0 1.1.100.2
ip route 100.1.1.0 255.255.255.0 FastEthernet0/1 1.1.100.6
!
!
!
access-list 100 permit ip any any
access-list 101 permit ip any host 100.1.1.251
access-list 102 permit ip any host 100.1.1.250
!
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
line aux 0
line vty 0 4
!
!
end
